Refine On (Hebei) Electric Power Technology Co., Ltd. is one of the leading manufacturers and suppliers of dissipation factor tester in China. If you're going to wholesale durable dissipation factor tester, welcome to get quotation from our factory. All customized products are with high quality and competitive price.

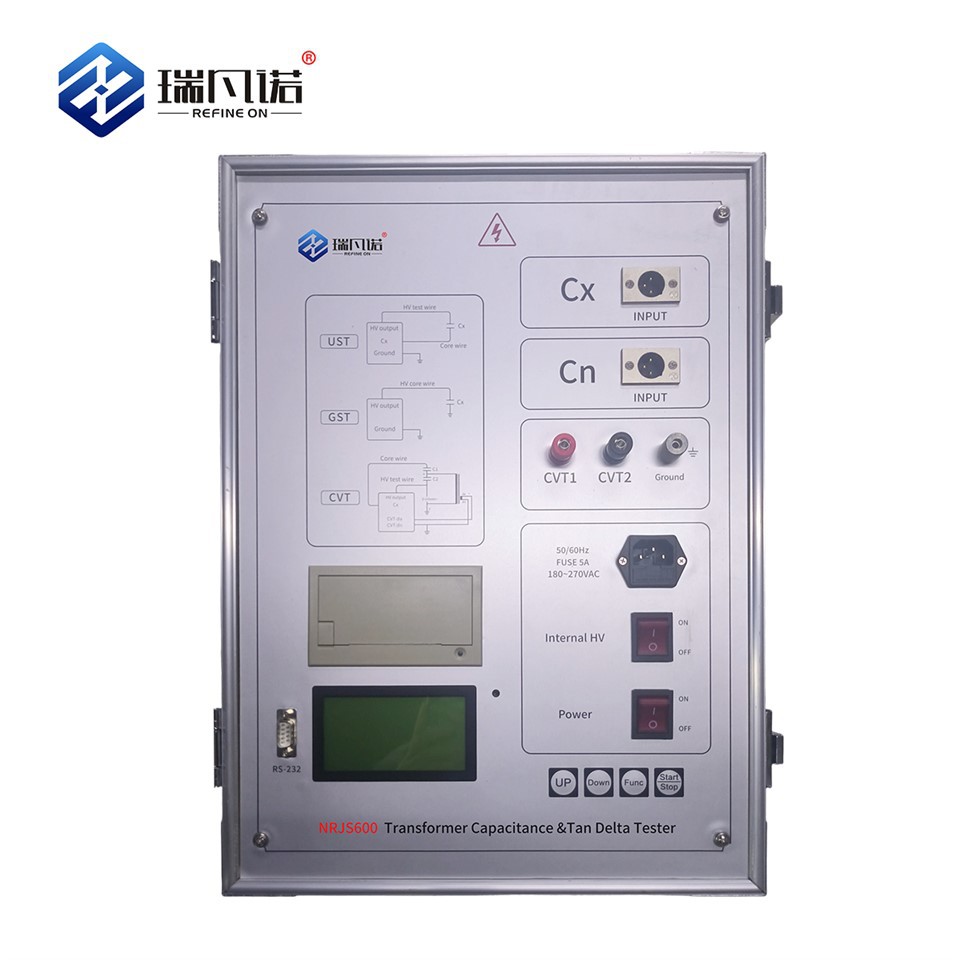

The dissipation factor tester (model: NRJS600) uses frequency conversion anti-interference and Fourier transform digital filtering to deliver stable data even under 200% interference. Automatic intelligent measurement is supported, complemented by a large-screen LCD display and a built-in thermal printer.
Product Parameters
|
Parameter |
Specification |
|
Cx Accuracy |
±(reading×1%+1pF) |
|
Tgδ Accuracy |
±(reading×1%+0.00040) |
|
Capacitance Range |
3pF~60000pF/10kV; 60pF~1μF/0.5kV |
|
Tgδ Range |
Unlimited, resolution 0.001% |
|
Test Current |
10μA~5A |
|
Internal Voltage |
0.5~10kV, max 200mA |
|
Test Frequency |
45~65Hz, 49/51Hz, 45/55Hzauto |
|
CVT Output |
3~50V, 3~30A |
|
Power Supply |
180V~270VAC, 50/60Hz |
|
Weight / Size |
22kg / 34x26x27 cm |
Product Advantages
Frequency conversion anti-interference guarantees accurate measurement even under strong interference. High precision is achieved with input resistance below 2Ω, effectively eliminating test line errors. Multi-level safety protection covers HV/LV, grounding, CVT, and misoperation prevention. CVT self-excitation allows simultaneous C1/C2 measurement without rewiring, while the reverse wiring low-voltage shield accommodates bus-grounded 220kV CVT. Up to 100 data groups can be stored, complemented by an RS232 interface and a thermal printer.
Main Applications

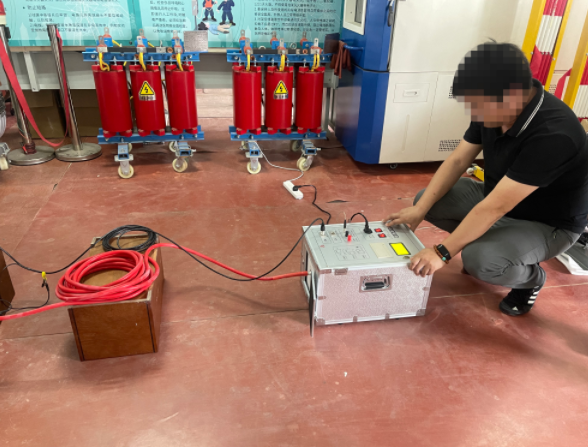

This dielectric loss tester functions as an insulation loss analyzer, a high voltage tan delta tester, a dielectric dissipation factor test kit, a Dielectric Dissipation Factor Tester, and a Capacitance and Dissipation Factor Tester. Typical applications include transformers, CVT bushings, insulation oil, solid materials, and on-site high-voltage equipment.

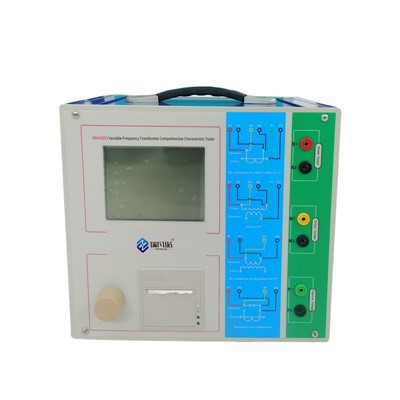

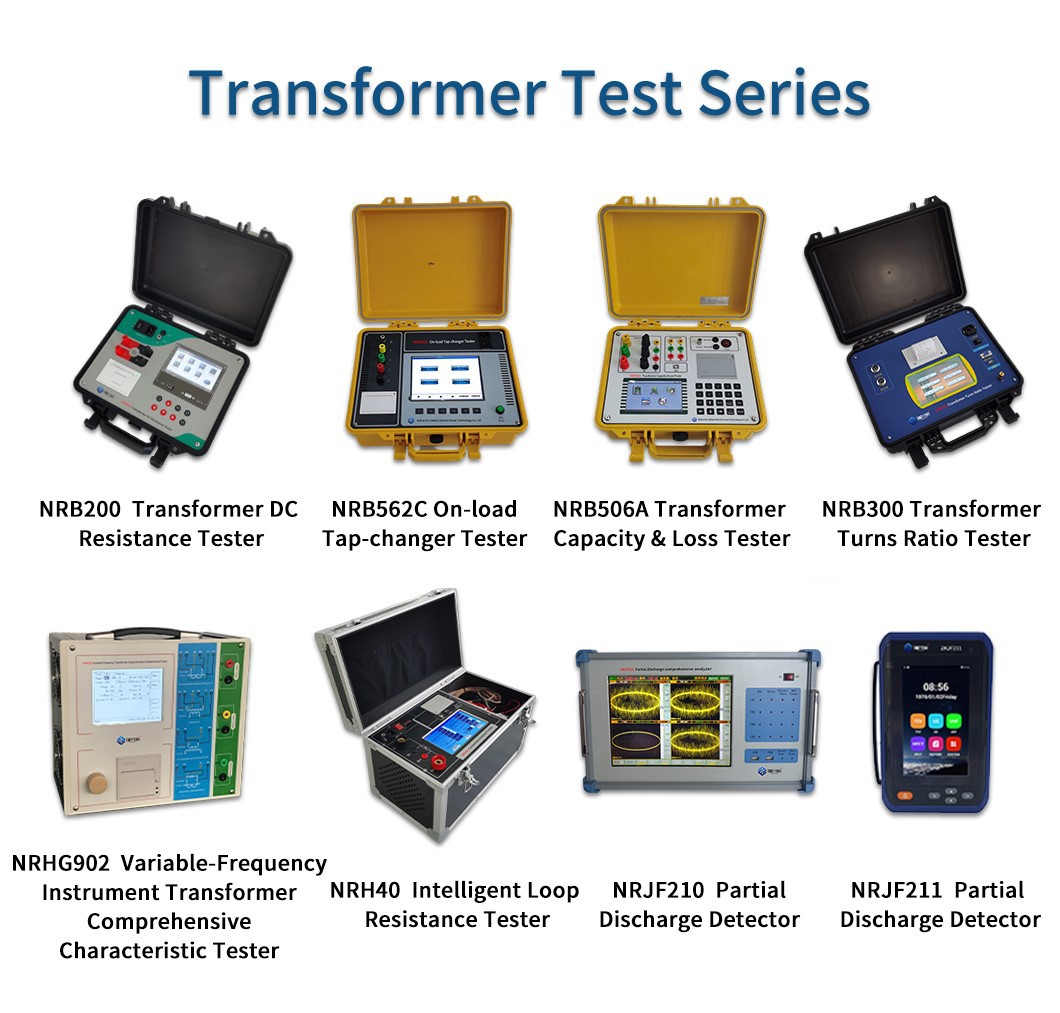

Related Products
Factory Show
Frequently Asked Questions (FAQ)
Q1: Why are my test results unstable?
A: Poor hook contact, inadequate grounding, or high air humidity (>90%) are the most common causes. Ensure 0Ω grounding and scrape off paint or rust at the grounding point.
Q2: How does the dissipation factor tester (model: NRJS600) handle CVT measurement?
A: Use CVT self-excitation mode. Connect the low-voltage output to any secondary winding, as no polarity requirement exists. The dissipation factor tester (model: NRJS600) then automatically measures C1 and C2 in a single test without requiring the high-voltage wire to be lifted.
