Refine On (Hebei) Electric Power Technology Co., Ltd. is one of the leading manufacturers and suppliers of transformer capacity tester in China. If you're going to wholesale durable transformer capacity tester, welcome to get quotation from our factory. All customized products are with high quality and competitive price.

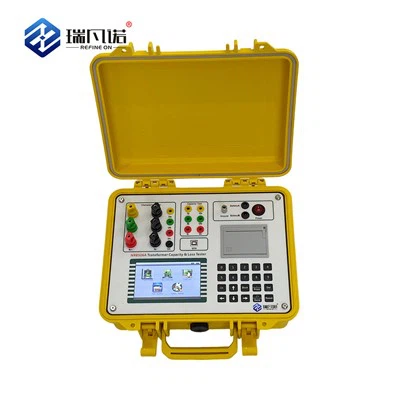

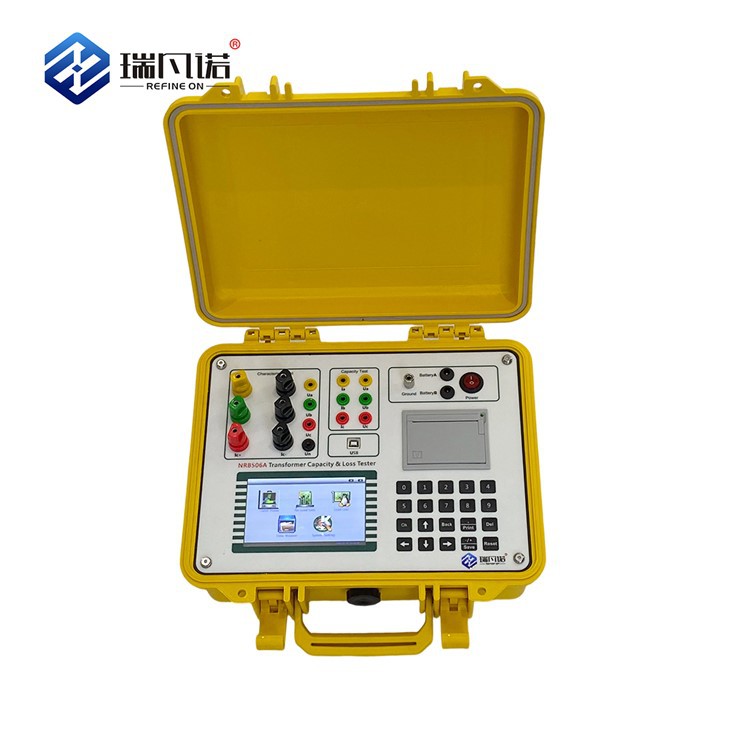

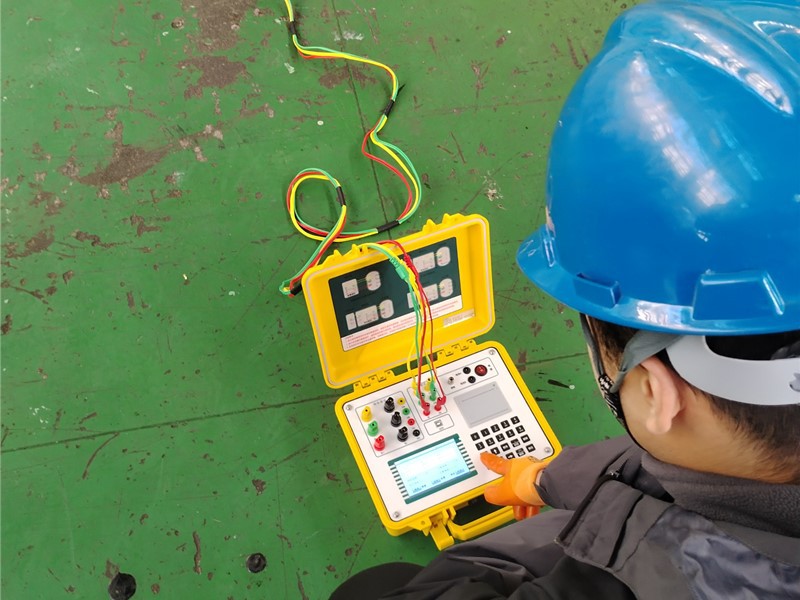

The transformer capacity tester (model: NRB506A) features a built-in rechargeable battery for over 100 continuous measurements and provides a three-phase 50Hz sine wave test power. It functions as a Transformer Load Tester, Transformer Performance Tester, Transformer Capacity and Characteristic Tester, Transformer Capacity and Load Tester, Transformer Capacity Test Set, Transformer Load No-Load Tester, Transformer Loss Tester, Transformer Load Loss and No-Load Loss Tester, Transformer Parameter Tester, Transformer Characteristic Tester, Portable Transformer Capacity Tester, Field Transformer Capacity Tester, and On-site Transformer Capacity Tester. Automatic corrections include waveform distortion, temperature, and non-rated voltage/current.
Product Parameters
|
Parameter |
Specification |
|
Built-in voltage |
0～10V |
|
Built-in current |
0～10A |
|
External voltage |
0～750V |
|
External current |
0～100A |
|
Accuracy (V/I) |
±0.2% |
|
Accuracy (Power) |
±0.5% (CosΦ>0.1) |
|
No-Load/Load Loss Accuracy |
±2% |
|
Working temperature |
-20℃～+60℃ |
|
Weight |
2.5kg |
Product Advantages
Built-in battery enables field work without external power. Wide 750V/100A input range with protection circuits eliminates range concerns. External PT/CT easily expands measurement capability. Large color LCD with English menus and thermal printer ensure user-friendly operation.
Main Applications
The transformer capacity tester (model: NRB506A) measures distribution and power transformer capacity, type identification, no-load current/loss, load loss, and impedance voltage. It is ideal for on-site testing of bad power users and routine transformer maintenance.

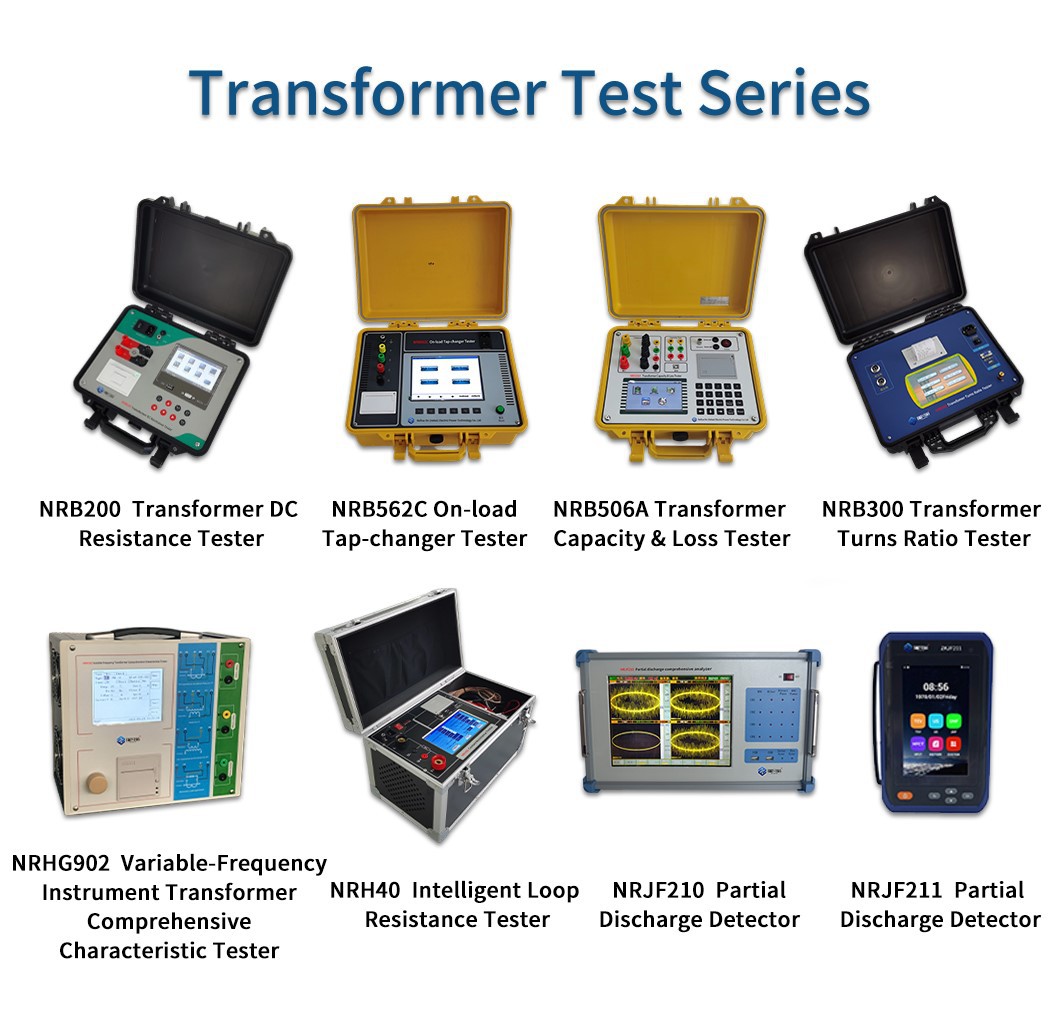

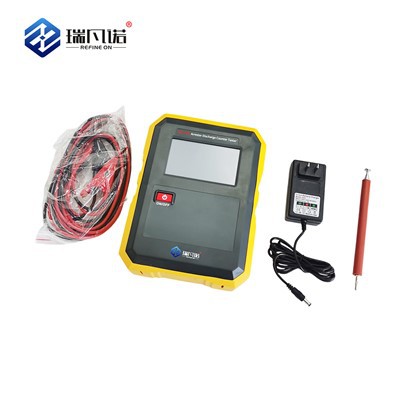

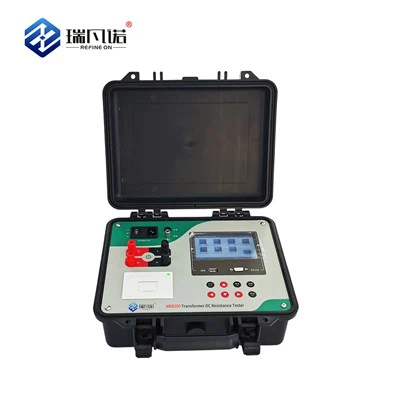

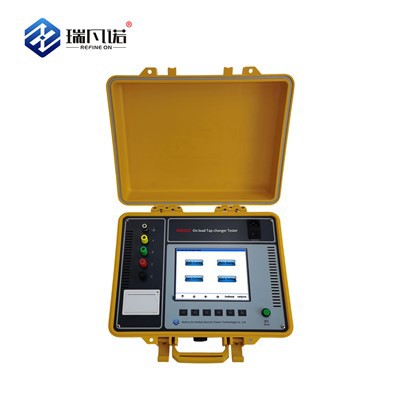

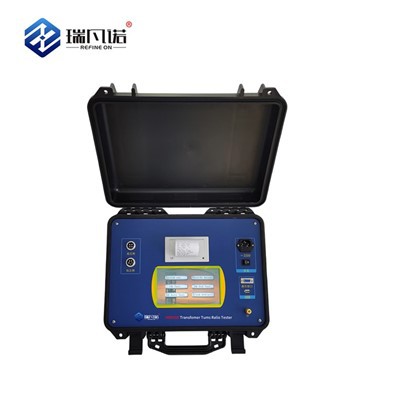

Related Products

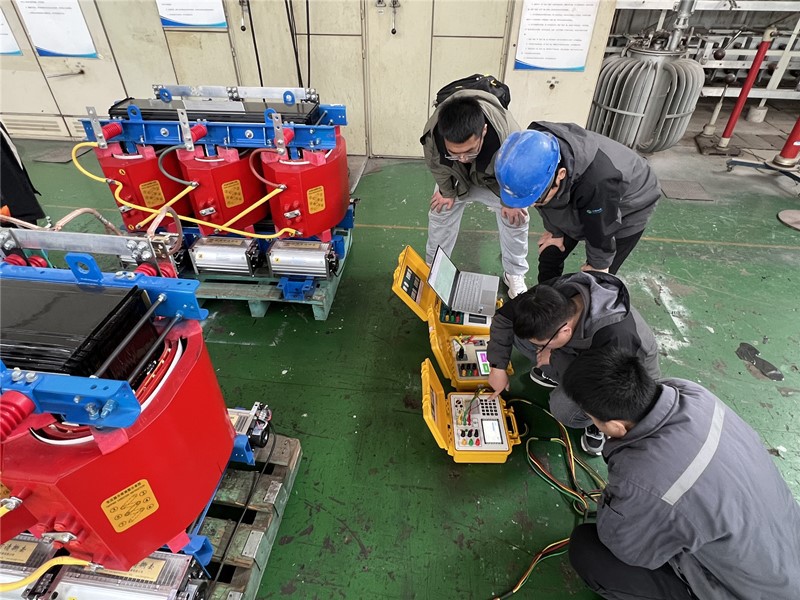

Factory Show
Frequently Asked Questions (FAQ)
Q: How does the instrument perform a capacity test without external power?
A: The instrument provides a built-in three-phase 50Hz AC test power (0～10V, 0～10A). Simply connect the wiring and ensure the non-powered side is short-circuited.
Q: What if the test voltage or current exceeds the instrument range?
A: Connect external PT (voltage transformer) or CT (current transformer). Input the PT/CT ratio in the parameter settings e.g., 10kV/0.1kV=100. The instrument automatically calculates the actual values.
