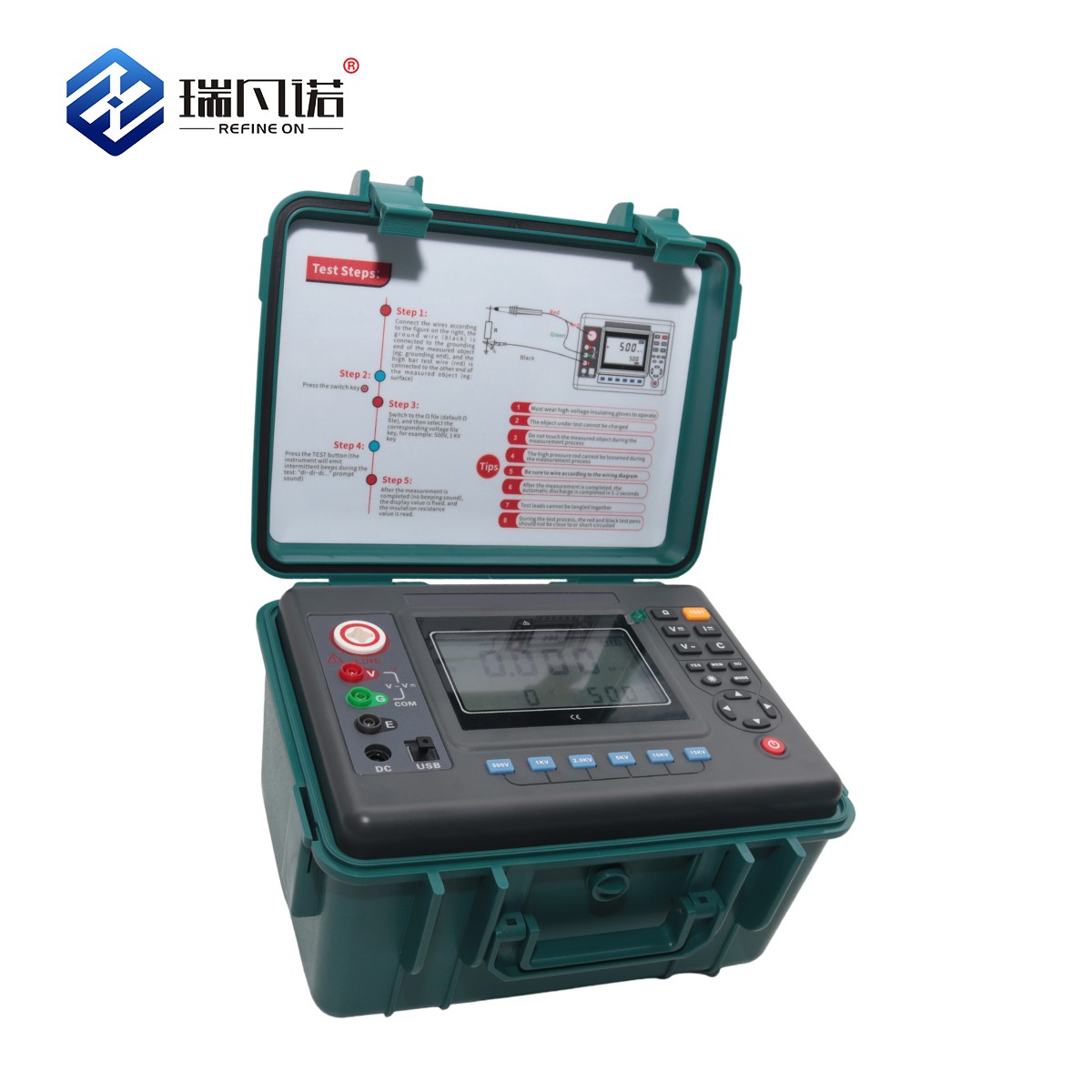

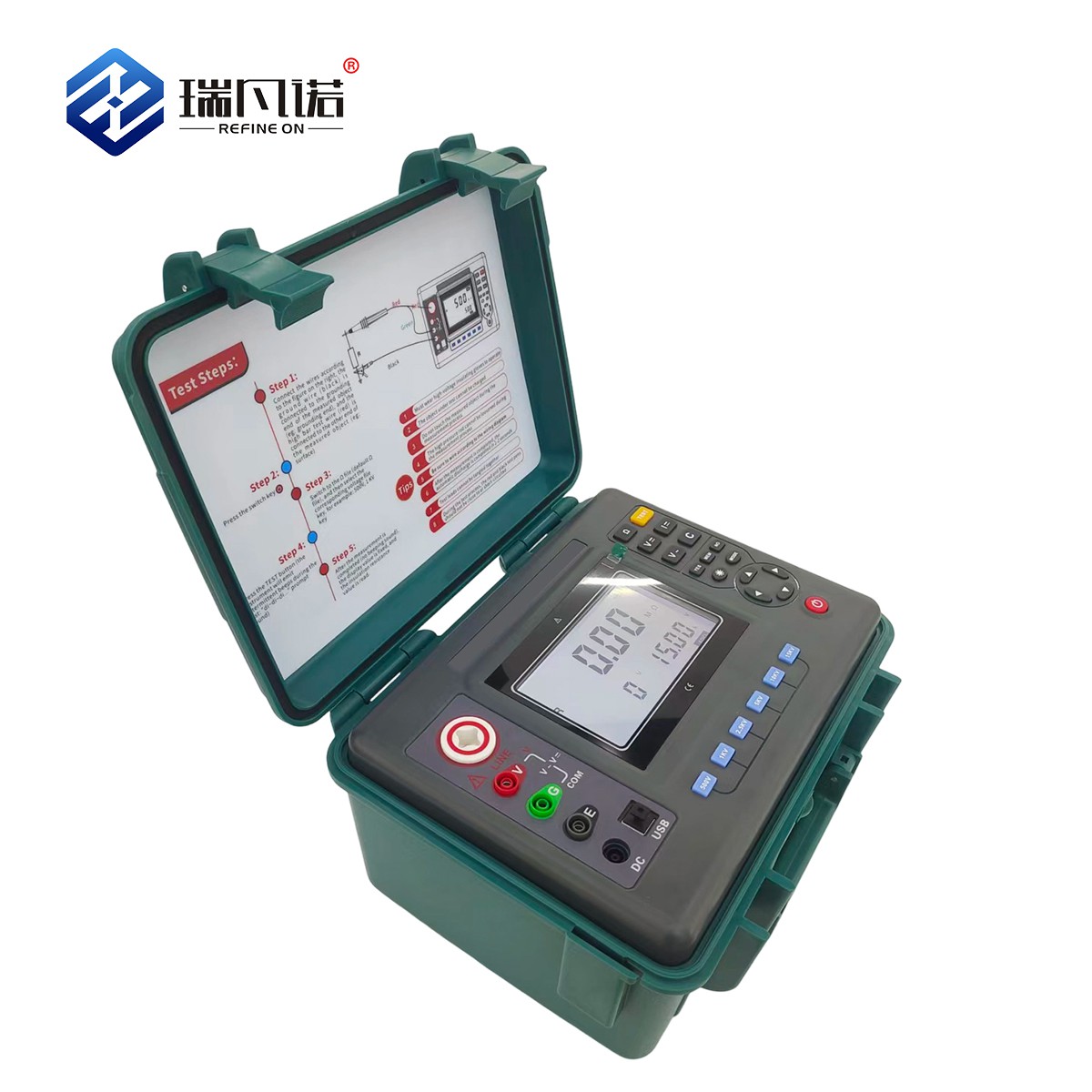

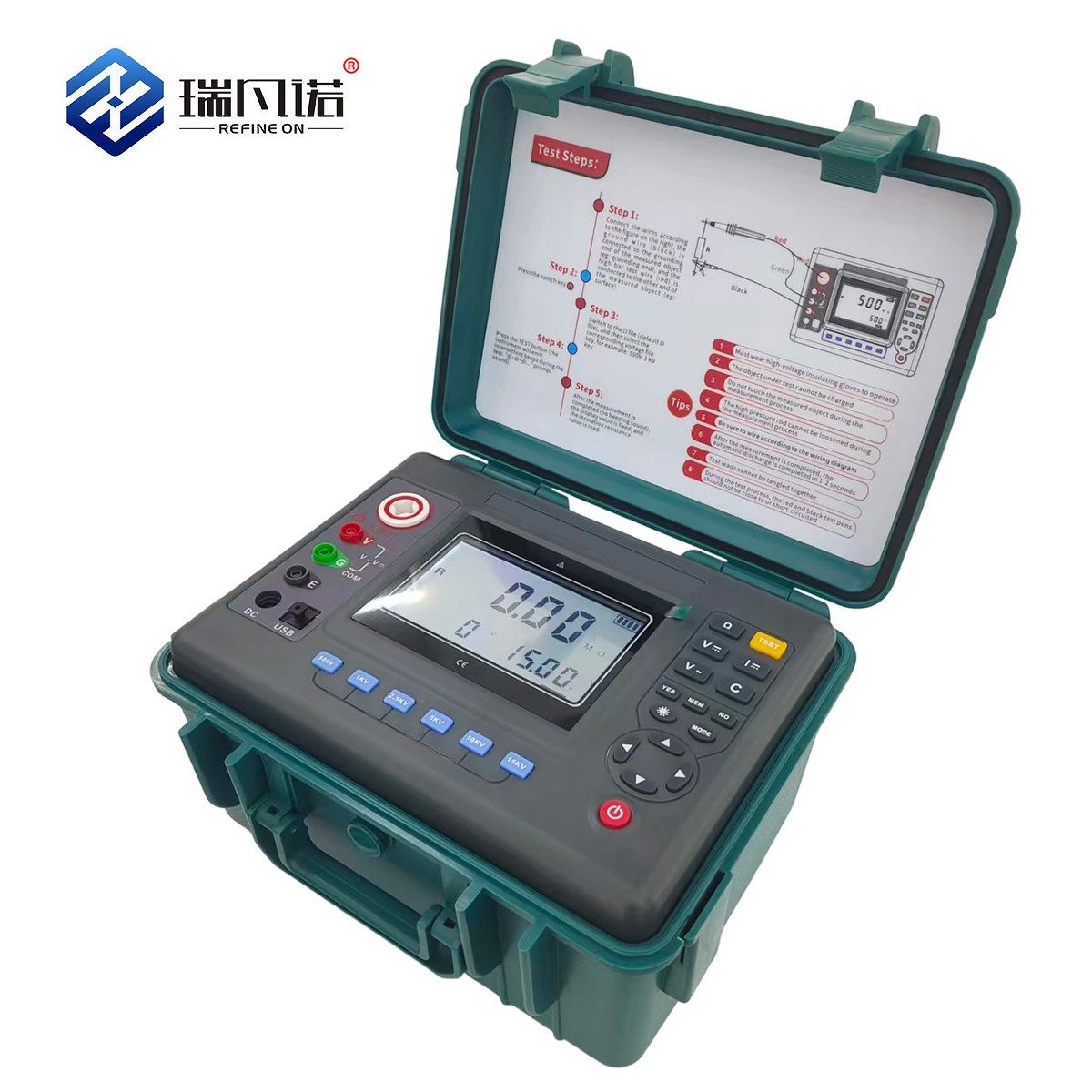

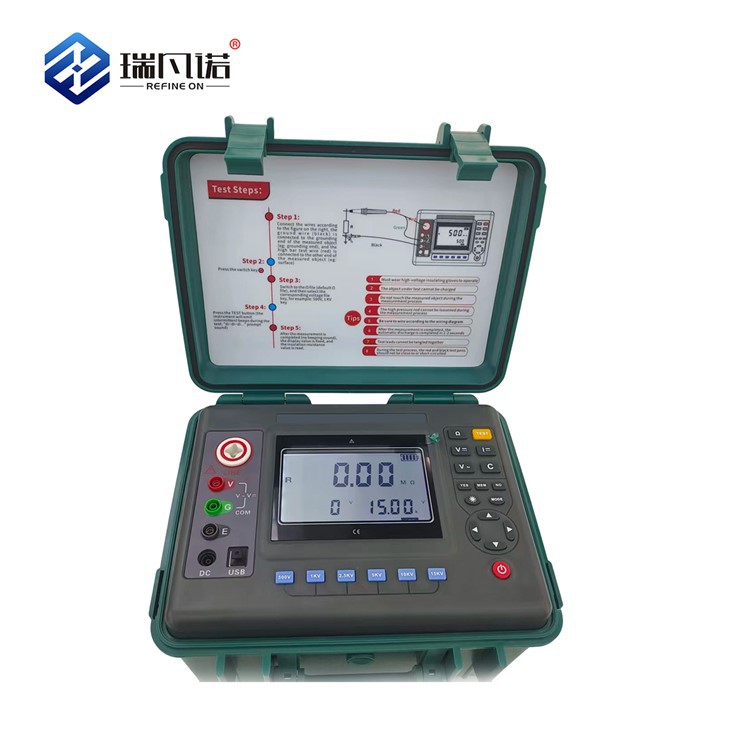

Digital High Voltage Insulation Tester shares the same robust platform as the NRG2705 but with a higher output voltage (15 kV) and extended resistance range. It also features automatic PI, DAR, and step‑voltage tests. A large backlit LCD, data logging, and USB export are standard. The tester is powered by a rechargeable Li‑ion battery (AC220V charger). Safety features include live‑line detection, automatic discharge, and zero‑start interlock. Operating temperature: 0°C to 40°C, humidity <90% RH, altitude <3000 m.
Product Parameters
|
Parameter |
Value / Specification |
|
Model |
NRG3045 (15 kV version) |
|
Test voltages |
500 V, 1000 V, 2500 V, 5000 V, 10000 V, 15000 V |
|
Resistance range |
0.01 MΩ – 30 TΩ |
|
Accuracy |
±5% reading (0.1 MΩ – 1 TΩ); ±20% (1 TΩ – 30 TΩ) |
|
Resolution |
0.01 MΩ (low range) to 0.1 GΩ (high range) |
|
Short‑circuit current |
≥5 mA |
|
PI / DAR / step voltage |
Automatic calculation and test sequence |
|
Leakage current range |
0.001 µA – 5 mA |
|
Display |
LCD with backlight, 5‑digit |
|
Data storage |
200 records |
|
Power supply |
Rechargeable Li‑ion battery (AC220V charger) |
|
Battery life |
~7 hours continuous test at 15 kV |
|
Dimensions (W×D×H) |
480 × 405 × 230 mm |
|
Gross weight |
7 kg |
|
Operating temperature |
0°C – 40°C |
|
Operating humidity |
<90% RH |
Product Advantages
- Highest voltage (15 kV): Suitable for testing 35 kV class cables and large transformers.
- Very wide resistance range: Up to 30 TΩ for excellent resolution on high‑resistance insulation.
- Step‑voltage test: Automatically ramps voltage to detect weak spots in insulation.
- Large memory: Stores 200 test records with date/time stamp.
- Remote control: Optional Bluetooth for wireless operation from a safe distance.
Applications
- Insulation testing of 35 kV and higher voltage power cables
- Condition assessment of large power transformers (rated up to 220 kV)
- Generator and high‑voltage motor insulation testing
- Switchgear and GIS (gas‑insulated switchgear) insulation verification
- Research laboratories for insulation material development
Related Products
Factory Show
FAQ
Q1: What is the difference between NRG2705 (10 kV) and NRG3045 (15 kV)?
A: The digital High Voltage Insulation Tester provides a higher test voltage (15 kV) and a wider resistance range (up to 30 TΩ), making it better suited for higher voltage equipment (e.g., 35 kV cables).
Q2: Can I perform a step‑voltage test?
A: Yes, the NRG3045 includes an automatic step‑voltage test mode. You can set the start voltage, step increment, and dwell time.
Q3: Is the tester safe to use on live circuits?
A: No. The Digital High Voltage Insulation Tester is for de‑energized equipment only. It includes a live‑line detection feature that prevents the test from starting if voltage >30 V is present on the terminals.
Q4: How do I export data?
A: Connect the tester to a PC via USB. The stored data appears as a virtual drive, and you can copy the CSV files directly.
