Refine On (Hebei) Electric Power Technology Co., Ltd. is one of the leading manufacturers and suppliers of 100kv oil dielectric strength tester in China. If you're going to wholesale durable 100kv oil dielectric strength tester, welcome to get quotation from our factory. All customized products are with high quality and competitive price.

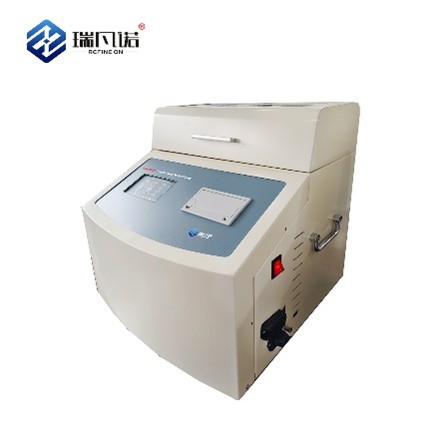

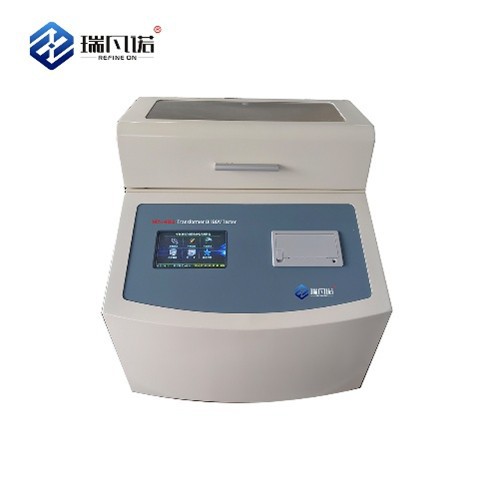

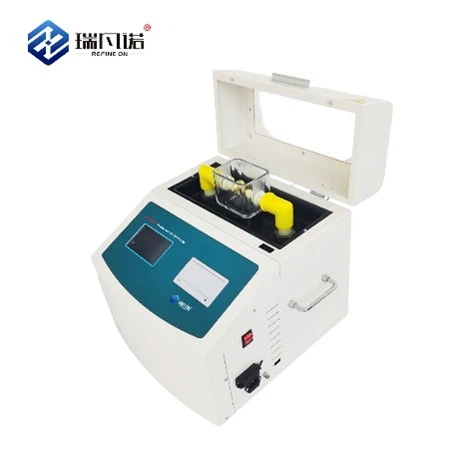

NRYH408E transformer oil BDV test kit is a fully automated device dedicated to dielectric strength testing of insulating oil in oil filled electrical equipment. This transformer oil BDV test kit adopts microchip control to realize one key automatic test, and is designed and manufactured in accordance with DL/T 5962005, GB/T 5072002 and DL/T 429.991. It is equipped with an 800×480 large color touch screen and low noise thermal printer, and can automatically complete oil sample standing, boosting, stirring, average calculation, data display, storage and printing.
Product Parameters
|
Item |
Specification |
|
Power supply voltage |
AC 220V±22V |
|
Power frequency |
50Hz±2.5Hz |
|
Power |
200W |
|
Output voltage |
0kV–100kV |
|
Boosting speed |
0.5–5.0kV/s, 10 optional speeds |
|
Total voltage distortion rate |
<2% |
|
Ambient temperature |
0℃–+45℃ |
|
Relative humidity |
≤85% |
|
Oil sample resting time |
0–15 minutes |
|
Breakdown interval time |
0–5 minutes |
|
Breakdown test times |
1–10 times |
Product Advantages
1. Builtin 13 test standards and 6 editable methods eliminate repeated manual parameter setting and reduce preparation time per test.
2. 10level adjustable boosting speed supports multiple oil types and test rules, avoiding extra investment in multiple test instruments.
3. Full automation reduces manual operation and human error, ensuring stable and repeatable test results and cutting down retest costs.
4. Regular maintenance only requires 2hour standby every 2 weeks, lowering longterm upkeep workload and failure risk.
Application Scenarios
Routine dielectric strength test of transformer oil in power system laboratories.
Onsite insulating oil testing for electrical equipment in factories, mines and enterprises.
Batch oil sample testing with tight schedules in power maintenance departments.
Field testing in strong electromagnetic field environments.

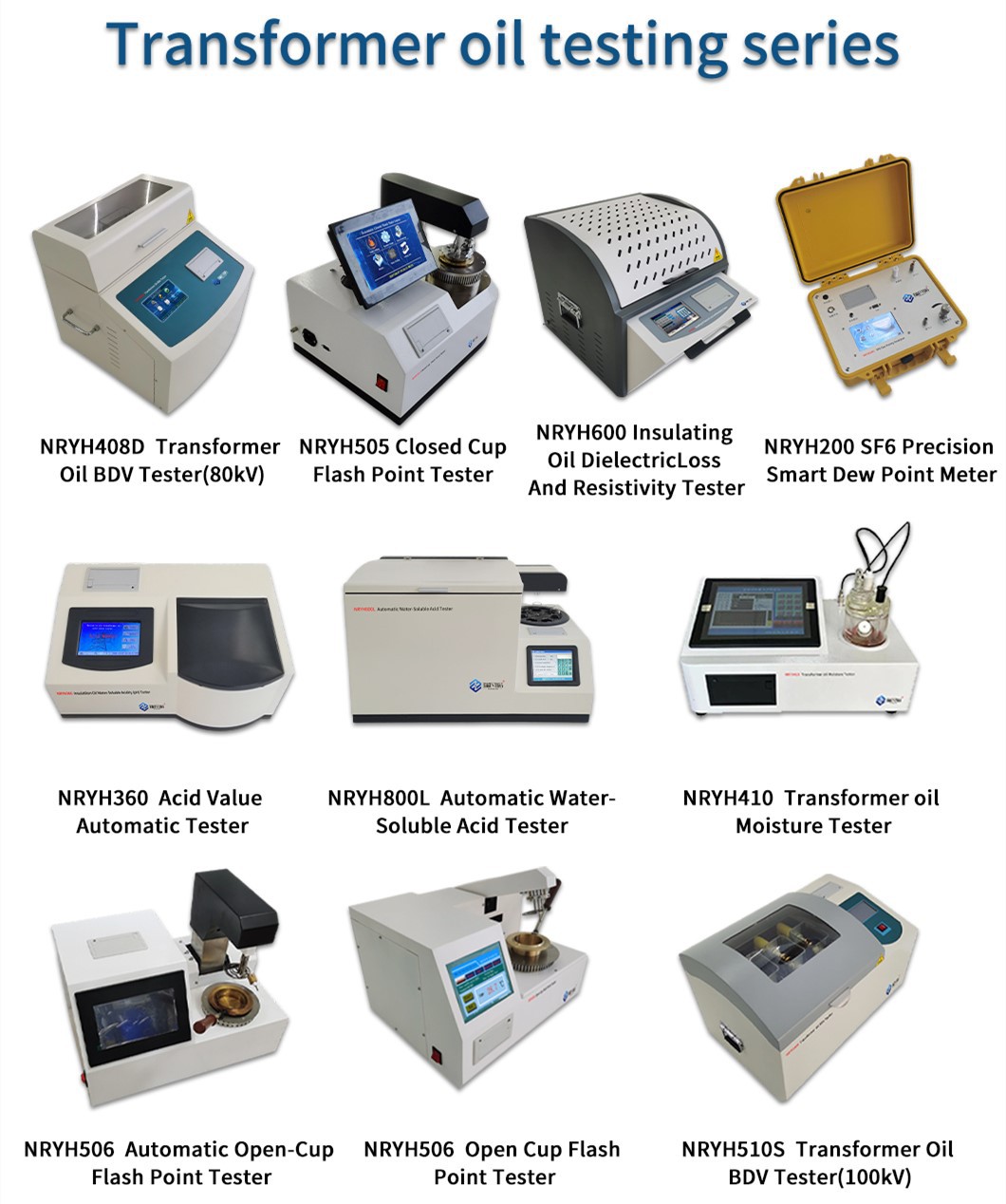

Related Products
Factory Show
FAQ
1. Q: How to clean the oil cup and electrode after testing lowquality oil with NRYH408E?
A: Wipe electrodes with clean silk cloth, adjust electrode distance with a standard gauge, clean 3 times with petroleum ether (1/4–1/3 cup volume, shake 1 minute, blow dry 2–3 minutes), then clean 1–3 times with the target oil sample before next test.
2. Q: What maintenance is needed if the instrument is not used for a long time?
A: Power on the instrument and keep it in standby mode for at least 2 hours every 2 weeks to ensure normal performance in next use. Also fill the oil cup with new transformer oil for protection.
