Refine On (Hebei) Electric Power Technology Co., Ltd. is one of the leading manufacturers and suppliers of open cup flash point tester in China. If you're going to wholesale durable open cup flash point tester, welcome to get quotation from our factory. All customized products are with high quality and competitive price.

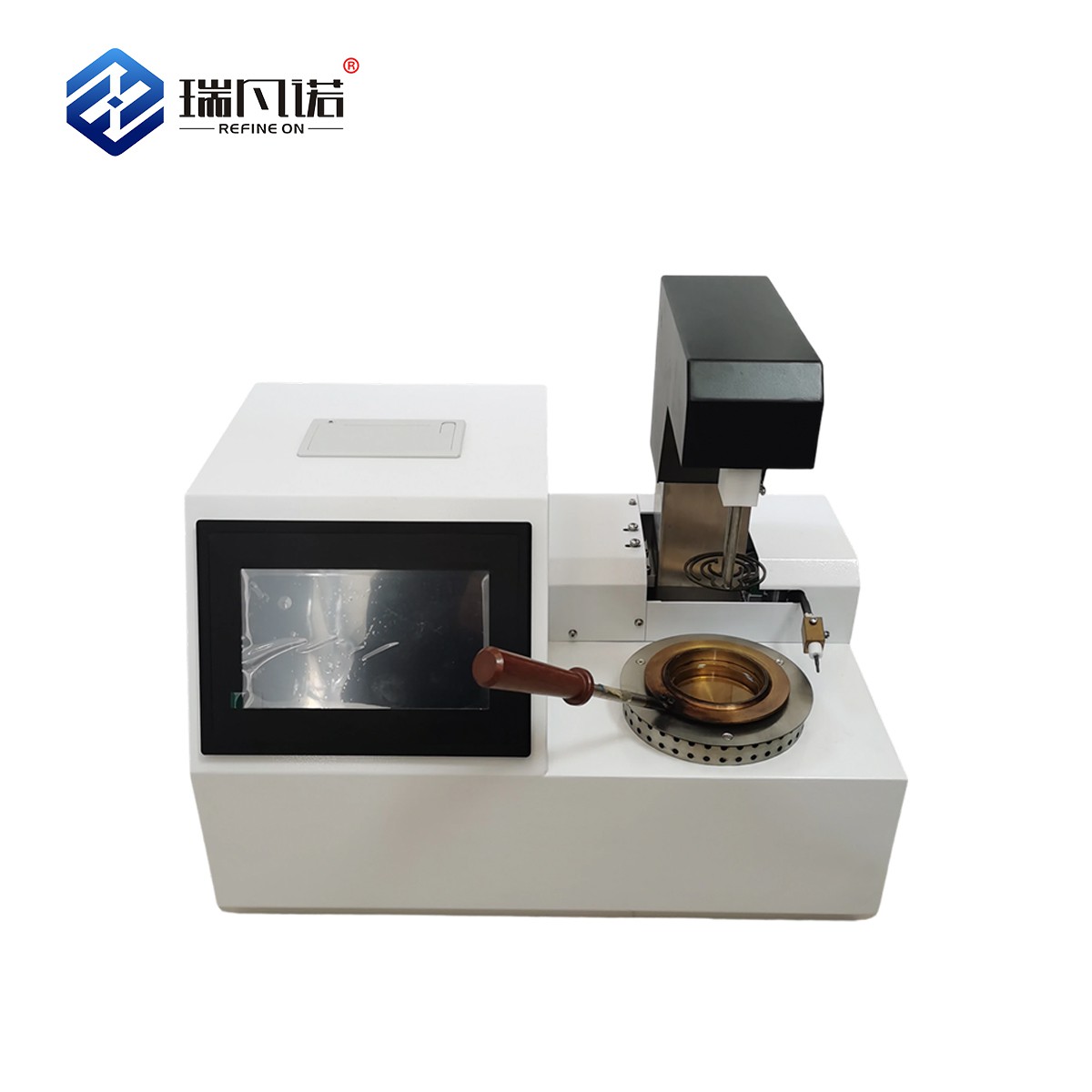

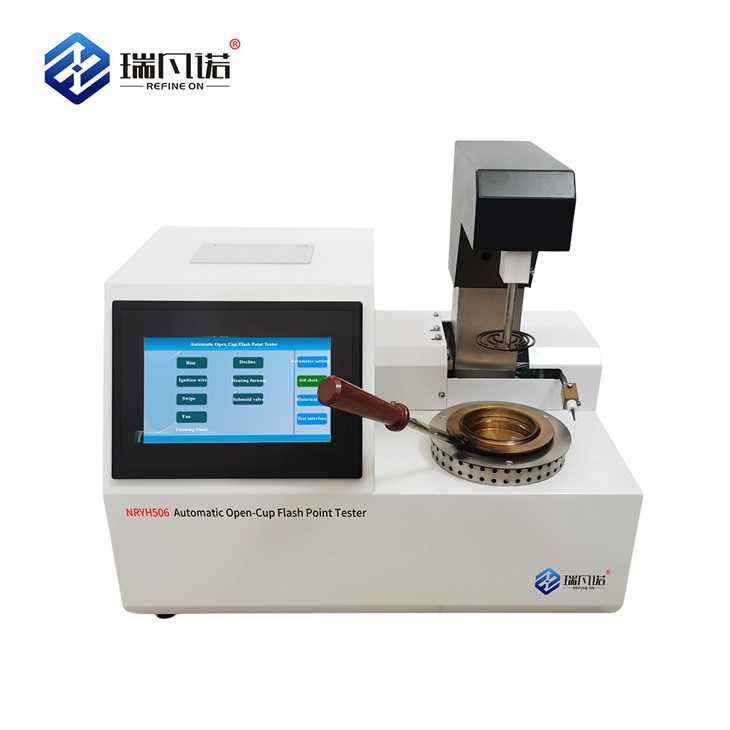

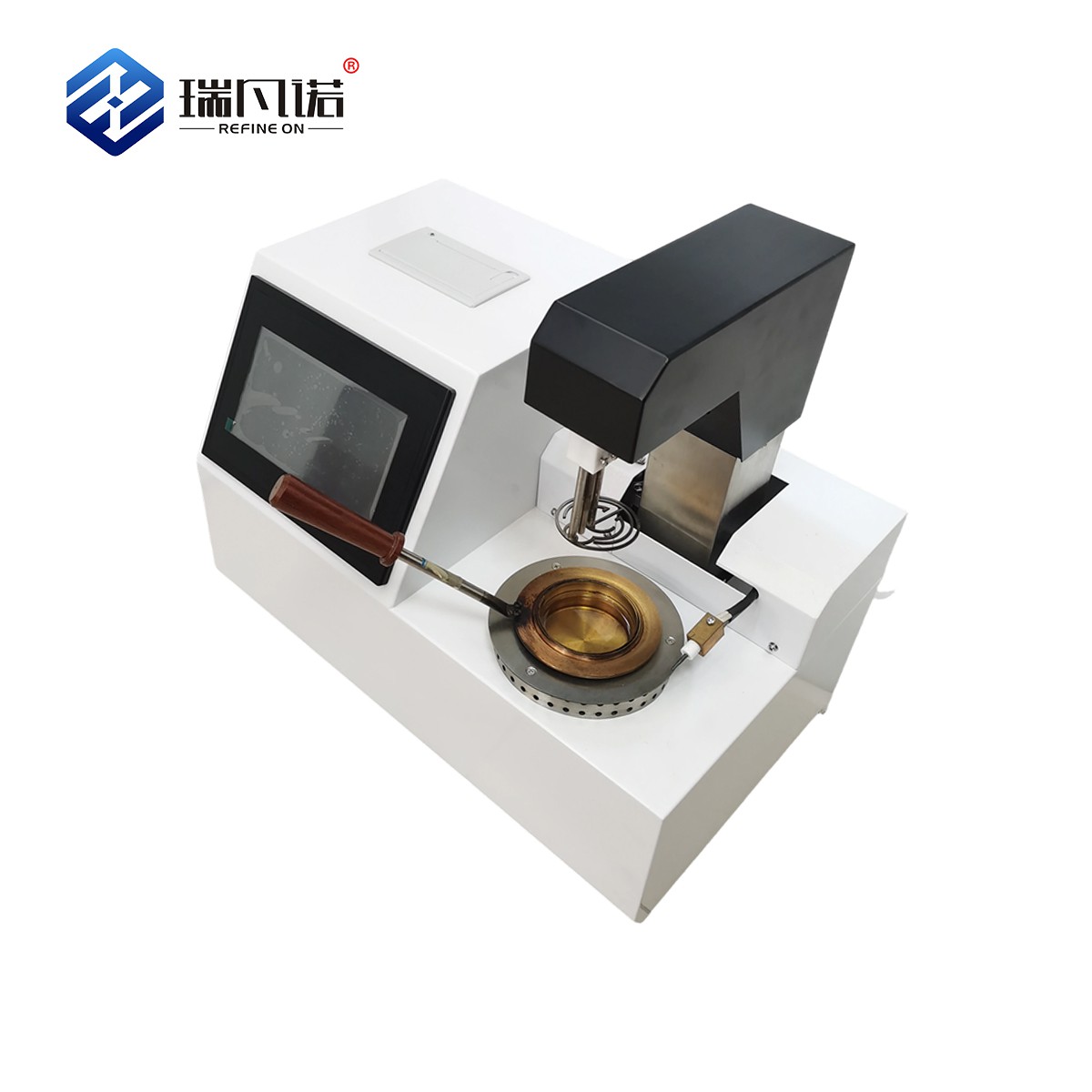

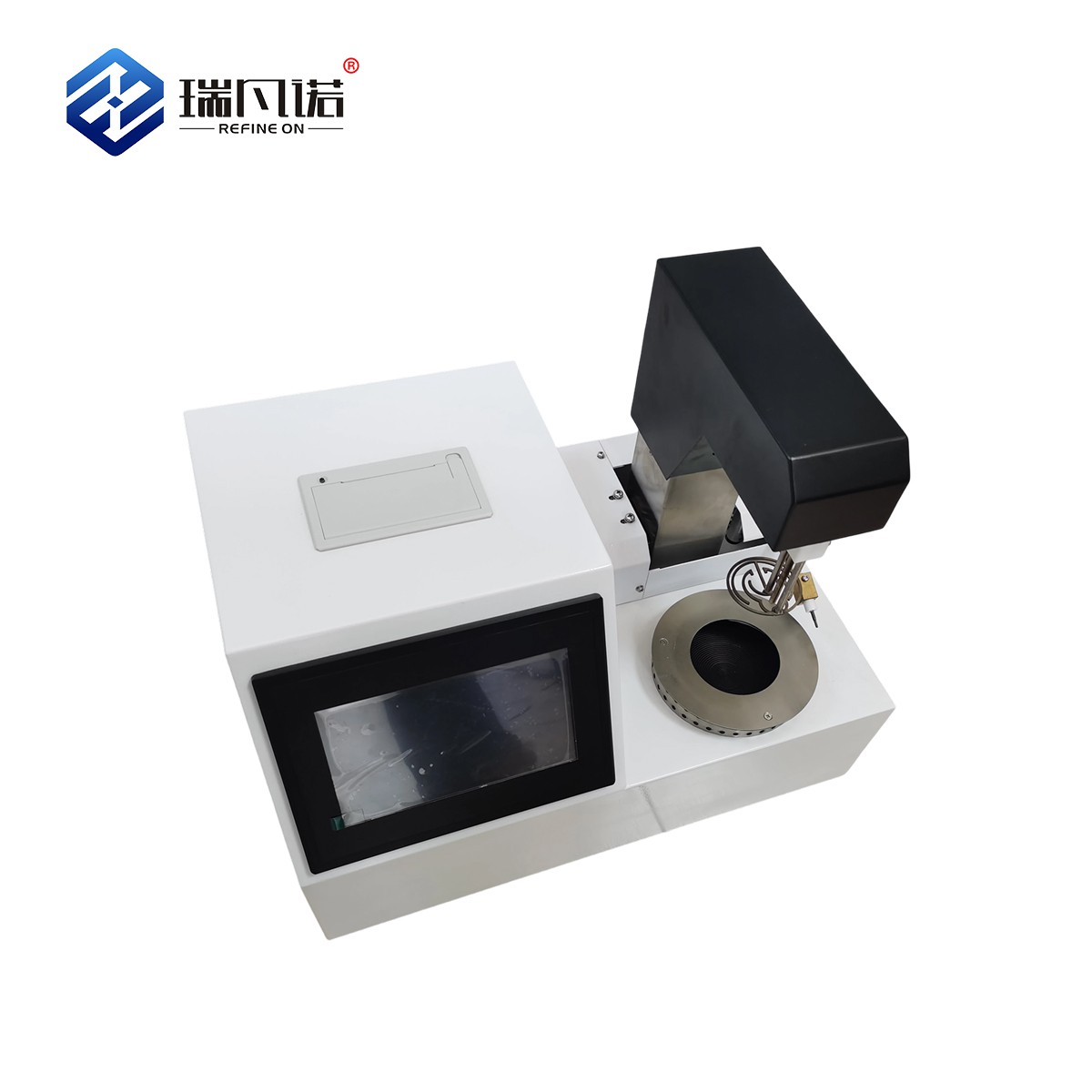

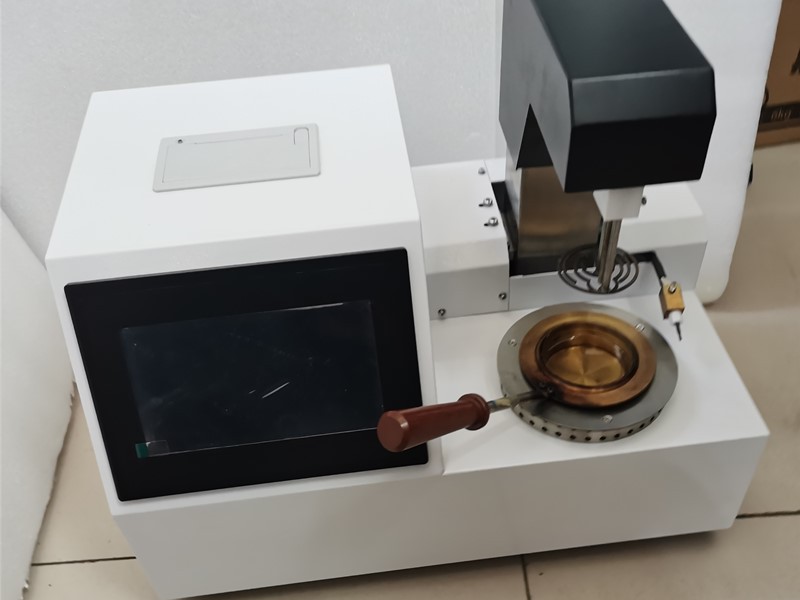

NRYH506 open cup flash point apparatus is a fully automatic testing instrument independently developed for oil product flash point detection. This open cup flash point apparatus uses highspeed C8051 microcontroller and SMT process to ensure stable system operation, and follows the standard heating curve to complete heating, ignition, sweeping and cooling automatically. It uses a large screen color touch screen with intuitive operation and a thermal printer for fast and low noise record output, and can lock flash point temperature in real time with sound prompt to meet standard test requirements.
Product Parameters
|
Item |
Specification |
|
Model |
NRYH506 |
|
Measuring range |
40℃ to 400℃ |
|
Temperature detection |
Platinum resistance |
|
Accuracy |
±1℃ |
|
Repeatability |
±3℃ (≤150℃), ±5℃ (>150℃) |
|
Ignition mode |
Electric ignition |
|
Cooling mode |
Air cooling |
Product Advantages
The instrument realizes fully automatic lifting, sweeping and ignition without manual operation, reducing manual operation time and labor input in single test.
It has a complete self check function to detect key components in advance, avoiding test errors and retest losses caused by equipment failure.
It uses platinum resistance temperature detection with high accuracy, reducing data deviation and ensuring onetime effective test.
It supports historical data storage, printing and serial port transmission, avoiding manual recording errors and saving data sorting time.
Application Scenarios
Petroleum industry: flash point test of crude oil, fuel oil and other petroleum products.
Chemical industry: flash point detection of chemical solvents and raw materials.
Electric power industry: insulation oil and electrical oil flash point test.
Commodity inspection department: product quality inspection and certification test.
Scientific research institutions: oil product performance research and experimental analysis.
Related Products
Factory Show
FAQ
1. Q: Why is the test result inaccurate when using NRYH506 open cup flash point apparatus?
A: The possible reasons are that the flash point sensor is immersed in the sample, the two rings of the sensor are in contact, the furnace plate temperature is higher than 56℃ during repeated tests, or the sample loading is inconsistent. Clean the sensor with petroleum ether, keep the sensor rings separated, cool the furnace plate below 56℃ and load the sample slightly below the scale line to ensure accurate results.
2. Q: How to maintain the flash point sensor of NRYH506 open cup flash point apparatus?
A: After long term use, oil contamination on the sensor will affect accuracy. Use petroleum ether to clean the sensor rings regularly, and do not immerse the sensor in the sample during test to keep it in good working condition.
