Refine On (Hebei) Electric Power Technology Co., Ltd. is one of the leading manufacturers and suppliers of 5kva/50kv frequency ac hipot tester in China. If you're going to wholesale durable 5kva/50kv frequency ac hipot tester, welcome to get quotation from our factory. All customized products are with high quality and competitive price.

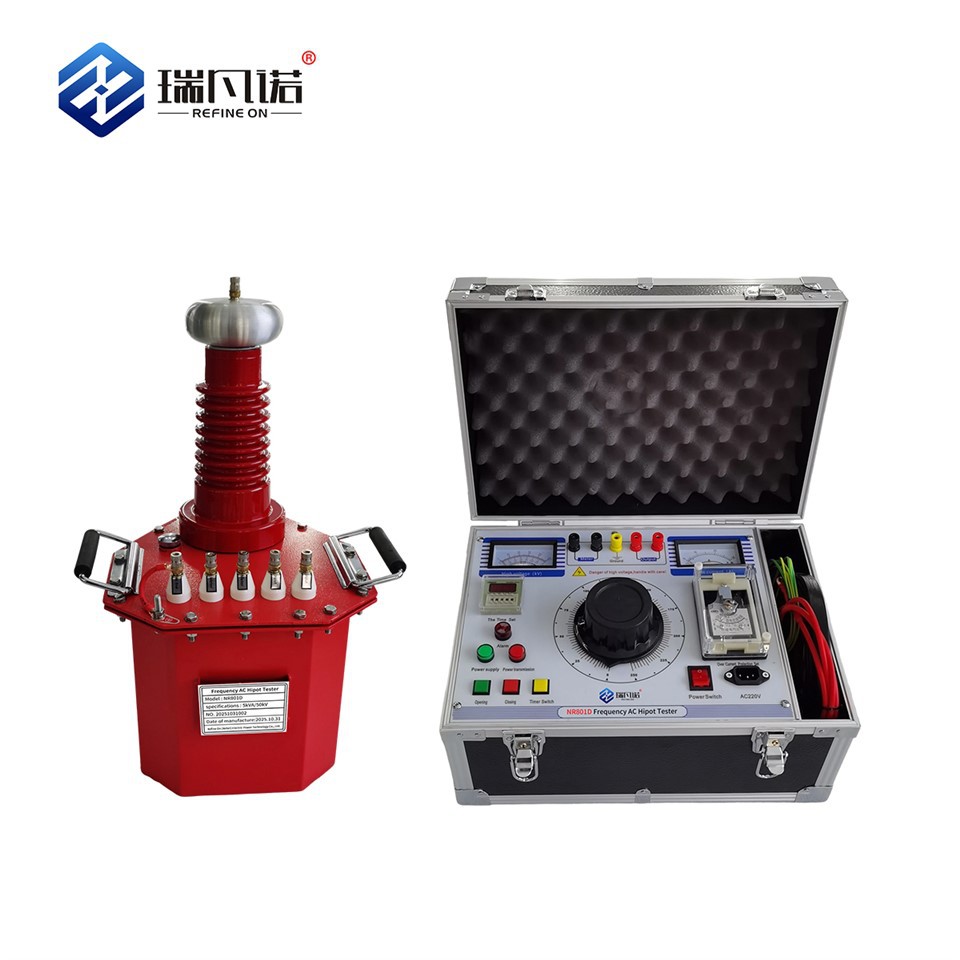

The NR801D 5kVA/50kV Frequency AC Hipot Tester combines a high-voltage transformer with a dedicated control box. The transformer core uses 0.30mm cold-oriented silicon steel sheets with a single-frame core design and no through-core screws, minimizing core losses and stray flux. The control box provides 0–250V variable output and includes overcurrent protection and timing protection for safe operation. Proper grounding is required before use. The unit is suitable for both laboratory and field applications.
Technical Specifications
|
Parameter |
Value |
|
Transformer Input Voltage |
0 – 200V |
|
Transformer Input Current |
25A |
|
Meter Voltage |
100V |
|
Rated High Voltage (AC) |
0 – 50kV |
|
Output Current (HV side) |
100mA |
|
Rated Capacity |
5kVA |
|
Control Box Input Voltage |
220V ±10% 50Hz |
|
Control Box Output Voltage |
0 – 250V |
|
Control Box Output Current |
0 – 25A |
|
Control Box Output Capacity |
5kVA |
|
Timing Range |
1 second – 99 hours |
|
Operating Temperature |
-20°C to +50°C |
|
Ambient Humidity |
Not specified (keep dry) |
|
Cooling Method |
Oil-immersed self-cooling |
|
Insulation Medium |
25# Transformer oil |
|
Core Material |
0.30mm cold-oriented silicon steel (DQ type) |
|
Winding Structure |
Concentric cylinder, multi-layer tower type |
|
Weight |
Not specified (lighter than TDM series) |
|
Dimensions |
Not specified |
Advantages
- Insulation design: Multi-layer oil channel structure improves dielectric strength without increasing volume.
- Leakage prevention: The top-mounted oil filler allows oil expansion, eliminating leakage common in tank-less designs.
- Core construction: Single-frame core with 0.30mm cold-oriented silicon steel, replacing traditional through-core screws for better mechanical stability.
- Weight reduction: Compact tank design reduces overall weight compared to previous TDM series.
Applications

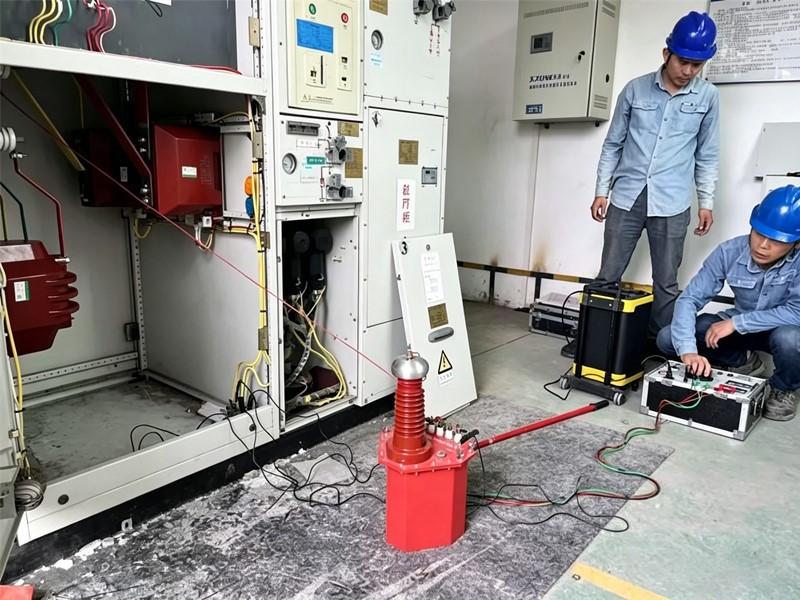

• AC withstand voltage testing of electrical equipment.
• DC testing (with optional current-limiting resistor and filter capacitor).
• Series excitation testing for higher voltage requirements.

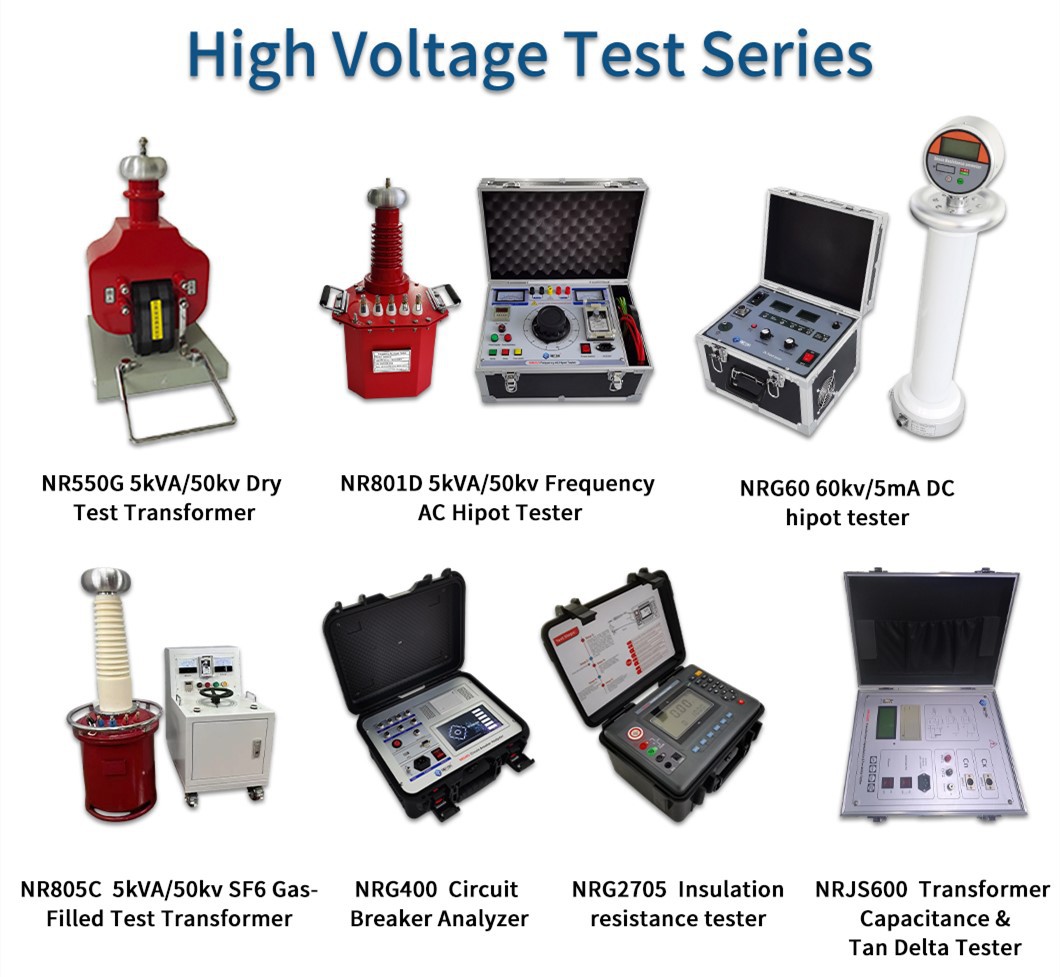

Related Products
Factory Show
FAQ
Q1: What is the required grounding procedure?
The high-voltage tail must be reliably grounded, and the product's grounding terminal must also be connected to earth before operation.
Q2: How to switch between AC and DC testing?
For DC tests, remove the silicon stack shorting rod (D) and series excitation rod (C) from the bushing, then wrap them in clean insulating paper. Reinstall both rods before returning to AC testing.
Q3: What maintenance is needed for the bushing?
If oil level is low (indicated by visible corona on the inner wall), remove the shorting rod and inject 25# transformer oil through the opening. Clean dirty bushing surfaces with a dry cloth before use.
Q4: When will you send samples?
Within 15 working days after payment.
Q5: What's your MOQ?
Standard MOQ: 1 pcs. Trial orders welcome.
Q6: Do you accept OEM?
Yes, custom logo is accepted.
