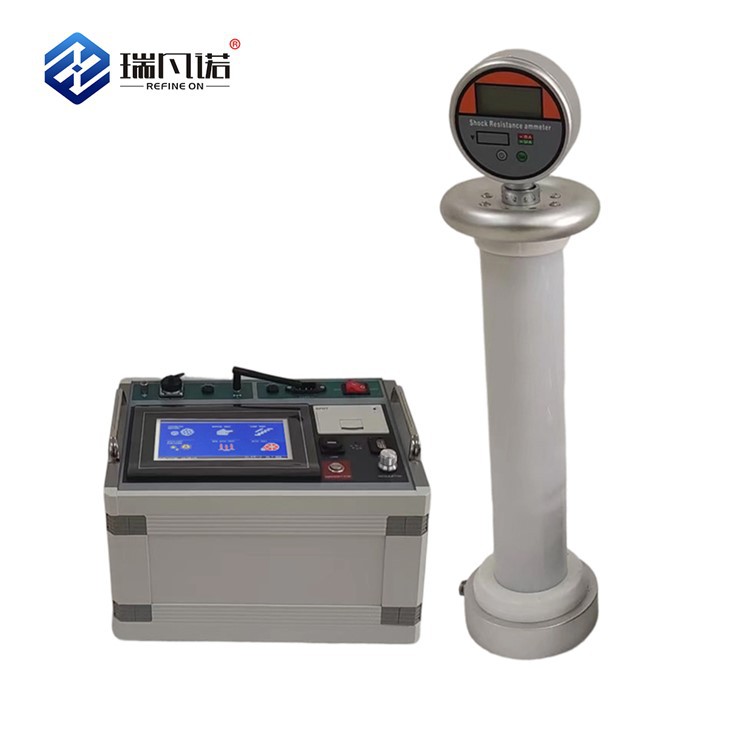

The NRG60Z/80Z/ 100Z/120Z Smart DC High Voltage Tester generates a negative polarity DC high voltage with an output ripple factor <0.5%. It integrates overvoltage protection, overcurrent protection, open-circuit protection, non-zero start protection, ground detection, and overload protection. The unit supports wireless anti-shock ammeter data transmission and is suitable for field and laboratory insulation testing on capacitive and resistive loads.
Product Parameters
1. Model Specifications (Control Unit & HV Unit)
|
Model |
Rated Voltage |
Rated Current |
Control Unit Dimensions (mm) |
Control Unit Weight |
HV Unit Dimensions (mm) |
HV Unit Weight |
|
NRG60Z |
60 kV |
2-10 mA |
345×250×235 |
6.5 kg |
164×90×420 |
5 kg |
|
NRG80Z |
80 kV |
2-10 mA |
345×250×235 |
6.5 kg |
164×90×420 |
5 kg |
|
NRG100Z |
100 kV |
2-10 mA |
345×250×235 |
6.5 kg |
164×90×510 |
5 kg |
|
NRG120Z |
120 kV |
2-10 mA |
340×250×235 |
6.5 kg |
164×90×560 |
5.7 kg |
Note: HV unit dimensions = pressure equalizing cover diameter (R) × insulation barrel diameter (r) × total height (H)
2. Common Technical Parameters
|
Parameter |
Value |
|
Polarity |
Negative |
|
Maximum output |
1.1 × rated voltage |
|
Output ripple factor |
<0.5% |
|
Operating power supply |
Single-phase AC 165V–245V, 50-60 Hz |
|
Host voltage measurement accuracy |
±0.5% ±2 digits, resolution 0.01 kV, max display 99999 |
|
Host current measurement accuracy |
±0.5% ±2 digits, resolution 0.1 µA, max display 99999 |
|
Wireless anti-shock ammeter accuracy |
±0.5% ±2 digits, resolution 0.1 µA, max display 9999 |
|
Wireless ammeter range (factory standard) |
0-5 mA (options: 0-10 mA, 0-20 mA) |
|
Resistance display range |
60 kV: 60 GΩ; 100 kV: 100 GΩ; 120 kV: 120 GΩ |
|
Working mode |
Intermittent, max 30 minutes |
|
Voltage stability |
≤0.5% when grid voltage varies by ±10% |
|
Operating temperature |
-10℃ to 40℃ |
|
Operating humidity |
<90% |
|
Storage temperature |
-20℃ to 50℃ |
|
Storage humidity |
<95% |
|
Altitude |
≤3000 m |
Key Advantages
- Measurement precision: Voltage and current accuracy ±0.5% ±2 digits, with 0.01 kV and 0.1 µA resolution respectively. Resistance display up to 120 GΩ (for 120 kV model).
- Protection features: Overvoltage, overcurrent, open-circuit, non-zero start, ground detection, and overload protection. Dual grounding (internal control cable ground + external panel terminal) ensures operator safety.
- Data handling: Stores up to 200 test records. USB export (FAT32, ≤32 GB) generates TXT tables. Embedded micro-printer for on-site recording. RS232/485 isolated interface (1000 VDC isolation) supports remote control.
- Wireless current measurement: Anti-shock ammeter transmits data to the host, eliminating cable shielding leakage current (<5 µA at 200 kV with 50 cm air gap).
- Step voltage control: 7 selectable steps – for ≤160 kV units: 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 5.0 kV.
- Capacitive load optimization: Automatic voltage regulation prevents overcurrent interruptions during cable or capacitor testing.
- HV unit construction: Solid encapsulation with DuPont materials; no air or oil insulation issues.
Applications

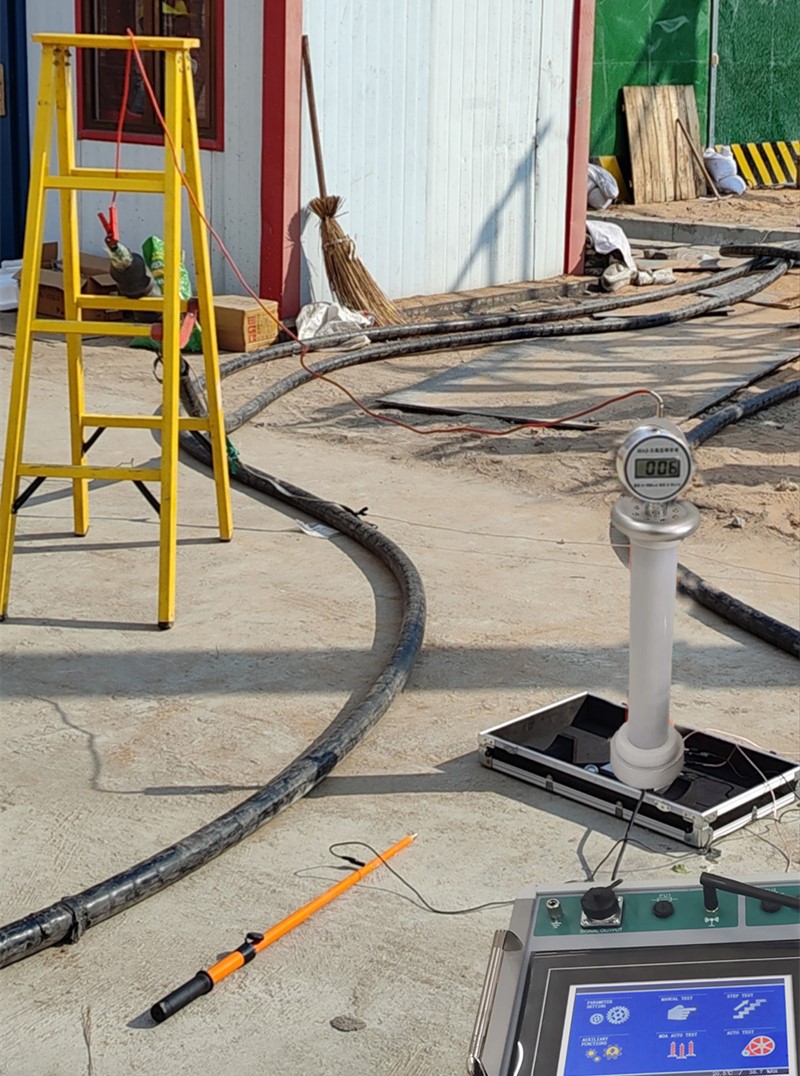

• DC withstand voltage testing on power cables, capacitors, and rotating machinery.
• Leakage current measurement and MOA (zinc oxide arrester) automatic testing.
• Preventive insulation testing in power generation, transmission, substations, and industrial facilities.

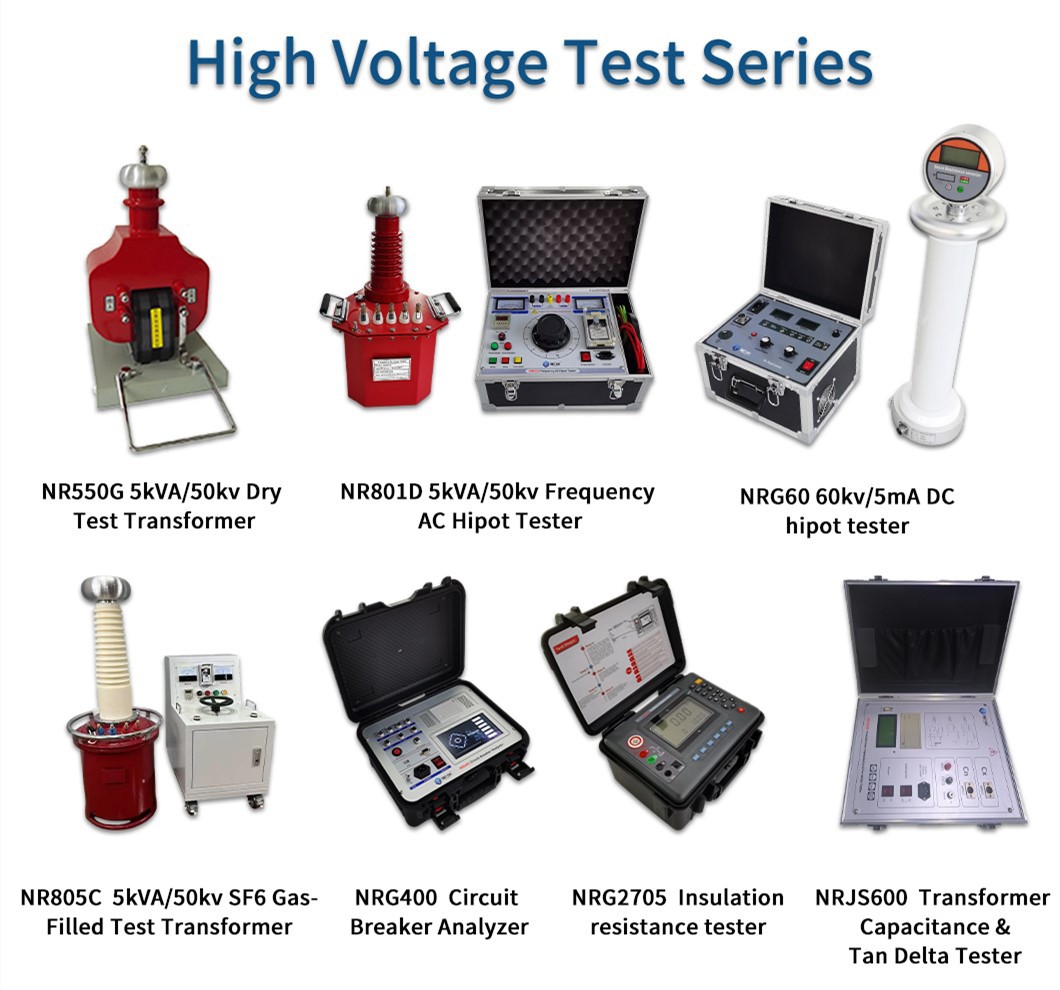

Related Products
Factory Show
FAQ
Q1: What is the maximum output voltage of the Smart DC High Voltage Tester?
A1: For the NRG120Z model, the rated output is 120 kV DC, with an over-range capability of 1.1× rated voltage (132 kV). The maximum output varies by model as listed in Section 3.1.
Q2: How does the wireless anti-shock ammeter improve measurement accuracy?
A2: The ammeter transmits current data directly to the host, eliminating leakage current from the high-voltage cable shielding layer. At 200 kV DC, with a 50 cm air gap, cable leakage current is <5 µA, ensuring that only the test object current is measured.
Q3: Can the Smart DC High Voltage Tester automatically test MOA arresters?
A3: Yes. In MOA mode, the unit automatically raises voltage to the 1 mA reference point, holds for 3 seconds, then reduces to 75% of that voltage and records the result. The test voltage should be set 10% higher than the expected 1 mA voltage, with overvoltage protection at least 2 kV above the test voltage.
Q4: What happens if the ground connection is poor?
A4: The instrument displays a ground fault warning. While high voltage output is still possible, the warning indicates potential chassis electrification. Dual grounding (internal cable ground + external terminal) provides redundancy, but proper grounding must be verified before use.
