This advanced Six Phase Relay Protection Tester features a standard 4-phase voltage and 3-phase current output, integrated with an independent auxiliary DC power source (110V/220V) to effortlessly test traditional and modern microcomputer-based relays. Powered by a high-performance DSP+FPGA architecture and linear amplifiers, it ensures exceptional waveform purity and measurement accuracy without manual hardware calibration. The system integrates an 8.4-inch TFT color display and a reliable Windows-based interface with built-in recovery protection, offering seamless standalone control via its built-in keyboard and mouse or via a direct USB connection to an external laptop.
Features
Versatile Field Testing
The Six Phase Relay Protection Tester delivers standard 4-phase voltage and 3-phase current outputs, effortlessly testing traditional and modern microcomputer protection systems like transformer differential relays.
Advanced Waveform Accuracy
Utilizes a high-performance DSP+FPGA architecture with 16-bit DAC output to generate 2,000 high-density sine wave points per cycle, significantly improving waveform purity and accuracy.
Stable High-Fidelity Output
Equipped with a high-fidelity linear power amplifier that ensures exceptional precision for small currents and rock-solid stability for large currents.
User-Friendly Standalone Interface
Features a built-in industrial computer running an intuitive Windows-based interface with an 8.4-inch TFT color display, integrated keyboard, mouse, and a system recovery function.
Flexible Dual-Control Connectivity
Supports direct plug-and-play USB connection to an external laptop, utilizing the same software ecosystem so no extra operator retraining is required.
Smart Auxiliary DC & Self-Calibration
Provides dedicated independent auxiliary DC outputs (110V/220V) and features software-based self-calibration to maintain long-term precision without manual hardware adjustments.
Technical Parameters
AC current source (3 * 30A)
|
Single phase current output (RMS) |
0 -- 30A / phase, accuracy: 0.2% ± 5mA |
|
Three phase parallel output (RMS) |
0 - 90A / three phase in phase parallel output |
|
Allowable working value of phase current for a long time (effective value) |
9.9A |
|
Maximum output power per phase |
300VA |
|
Maximum output power of three phase parallel current |
800VA |
|
Maximum output allowable working time of triple parallel current |
5s |
|
frequency range |
0 -- 1000Hz, accuracy 0.01Hz |
|
Harmonic number |
2--20second |
|
phase |
0- 360°, accuracy 0.1° |
DC current source
|
DC current output |
0--± 10A / phase, accuracy: 0.5% ± 5mA |
AC voltage source
|
Single phase voltage output (RMS) |
0 -- 120V / phase, accuracy: 0.2% ± 5mv |
|
Line voltage output (RMS) |
0--240V |
|
Phase voltage / line voltage output power |
75VA/100VA |
|
frequency range |
0 -- 1000Hz, accuracy: 0.01Hz |
|
Harmonic number |
2--20second |
|
phase |
0- 360°, accuracy 0.1° |
DC voltage source
|
Single phasevoltage output amplitude |
0--± 160V, accuracy: 0.5% ± 5mv |
|
Output amplitude of line voltage |
0--320V |
|
Phase voltage / line voltage output power |
90VA/180VA |
switching value terminal
|
Switch input terminal |
8yes |
|
Air contact |
1 -- 20 mA, 24 V, internal active output of the device |
|
Potential reversal |
Passive contact: low resistance short circuit signal Active contact: 0-250V DC |
|
Switch output terminal |
4 pairs, empty contacts, interruption capacity: DC: 0-30V/5A,AC:0-250V/5A |
others
|
time frame |
1ms -- 9999s, measuring accuracy: 1ms |
|
Volume and weight of portable series single machine |
Volume 328 x 157 x 250mm, about 12.5kg |
|
Power Supply |
AC220V±10%,50/60Hz,10A |
Working time of AC current
|
Working current＜10A |
working hours≤60minute |
|
20A＞Working current≥10A |
working hours≤70S |
|
30A＞Working current≥20A |
working hours≤15S |
|
Working current：30A |
working hours≤5S |
Hardware composition of the device
uilt-in Industrial PC
Powered by a high-performance industrial computer running a Windows-based OS. Features a 10.4-inch (800*600) TFT true-color LCD, a self-restoring CF card, an integrated industrial keyboard/mouse, and dual USB ports for easy data transfer and software upgrades.
DSP Digital Signal Processing
The Six Phase Relay Protection Tester utilizes a 6000-series DSP controller combined with FPGA programmable logic. It employs DDS hardware technology for exceptional frequency and phase accuracy, communicating via a stable USB 2.0 interface.
High-Precision D/A & A/D Conversion
Equipped with high-precision D/A converters and active low-pass filters for ultra-smooth waveforms. Includes a 7-channel A/D conversion circuit for real-time tracking and on-screen display of output waveforms, amplitude, and phase.
Linear Power Amplifiers
High-fidelity linear amplifiers directly output AC/DC waveforms, square waves, harmonics, and fault transients. Features full protection against overheating, overcurrent, overvoltage, and short circuits, alongside dedicated front-panel fault indicators and an advanced hardware-based high-current time-limiting circuit.
Binary Inputs & Outputs
Provides 8 pairs of switch inputs and 4 pairs of switch outputs, fully isolated via optocouplers and 24V DC relays. Powered by an independent, built-in 24V DC power supply.
Dedicated DC Power Output
Equipped with a toggle-switchable independent auxiliary DC power source (110V / 220V) to serve as the working power supply for protection devices under test.
Empty contact with potential:
Potential reversal:
Air contact:

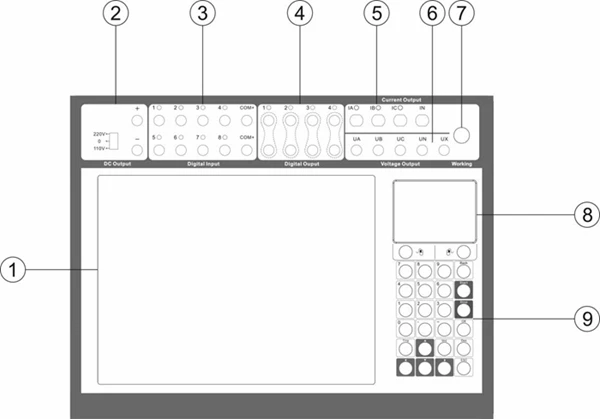

Device panel side panel description
Display & Control: Features a 10.4-inch LED screen, an integrated laptop-style touchpad, and a dedicated data-entry keyboard with directional and operational shortcut keys.
Signal Outputs: Standard 4-Phase Voltage (UA, UB, UC, UX, UN) and 3-Phase Current (IA, IB, IC, IN) terminals, equipped with open-circuit LED indicators.
Auxiliary Power Supply: Switchable DC 0 / 110V / 220V power source (max 2A) to power protection devices under test.
Binary I/O (Switching): Includes Input channels for active/passive contacts (detects up to DC 220V) and passive Output nodes (max capacity AC 220V/1A) for external control.
Connectivity & Expansion: Equipped with a USB communication port for external laptop control, an optional network port, and dual USB expansion ports for peripherals (mouse, keyboard, USB drives).
System Maintenance & Safety: Features a dedicated DSP reset button (RST) to resolve data transmission faults, an active high-speed cooling fan, a secure grounding terminal, and an AC 220V power interface with a 10A fuse.
Status Indicator: Multi-mode LED working light (flashing indicates standby; constant light indicates active operation).
